MARINE LED SPREADER LIGHT
SCM-SL
SCM-SL
The SHADOW-CASTER™ marine LED Spreader Light SCM-SL is perfect for illuminating decks and other large areas of your boat or yacht. It has a unique reflector design which spreads the light beams out to reduce glare.
The marine LED Spreader Light comes in black or white finish. It is available in 3 color output options: single color white; 3 color (white , blue and red ) as well as a full color version. The brightness and color can be controlled with a standard switch or use a Shadow-NET™ enabled controller to enjoy unlimited colors with the full color model.

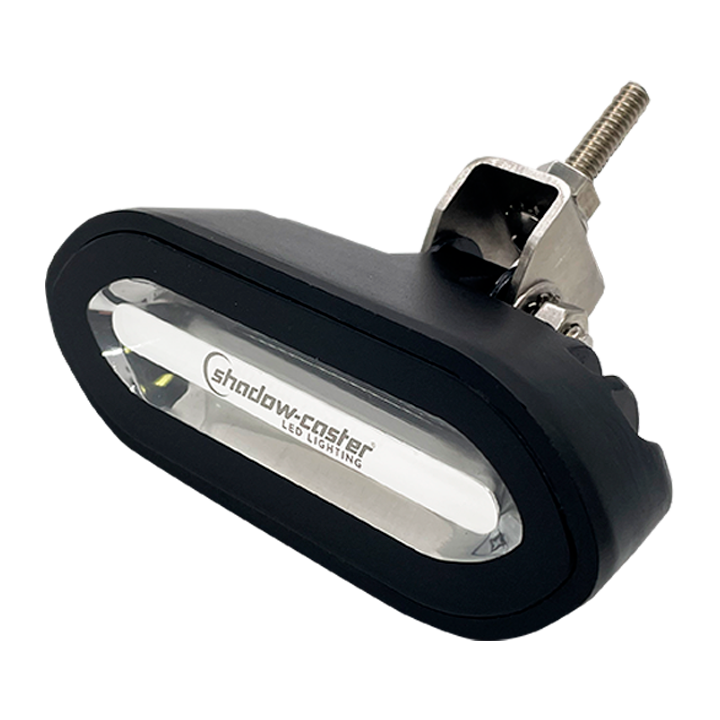

The flush mount version is great for mounting in T-Tops or use the bracket mount version to retrofit existing installations.
KEY FEATURES
- Soft start technology ramps the brightness up gently over 2 seconds
- Power toggle feature to set brightness and change color
- True white LED for best color performance
- Unique reflector design to reduce glare
- High efficiency switch mode power supply
- Waterproof low-profile aluminum housing
- White or black finish
- 3-Year Warranty
COLORS AVAILABLE / PART NUMBER
Great White – 1 color light
SCM-SLF-GW-WH (flush mount, white housing)
SCM-SLF-GW-BK (flush mount, black housing)

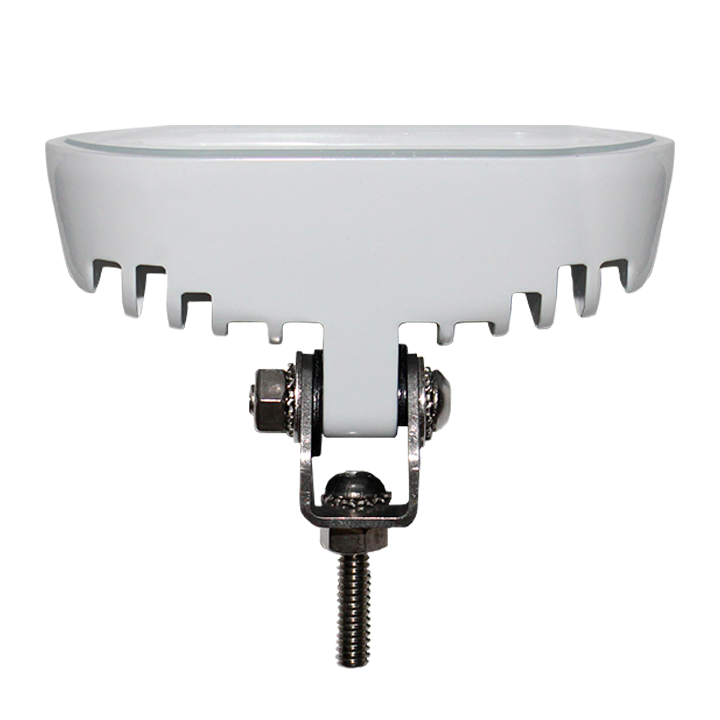

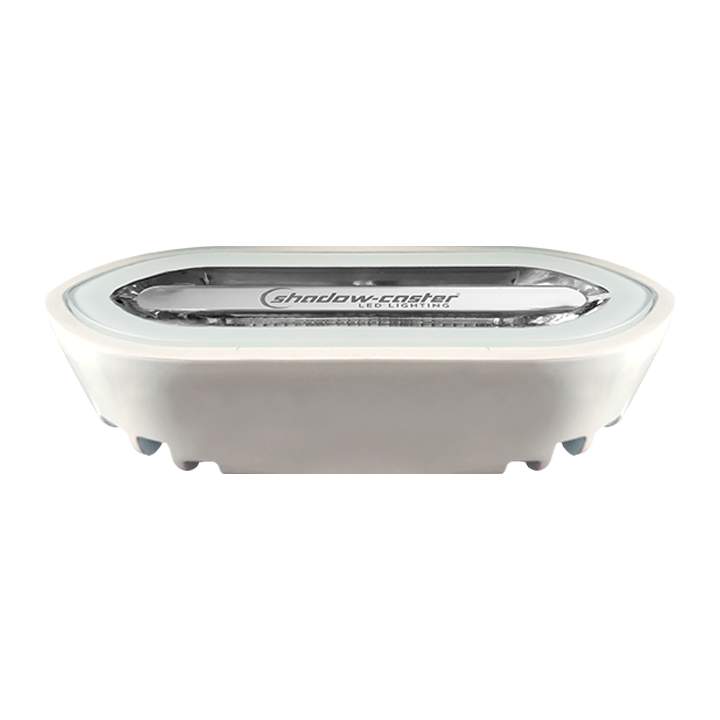

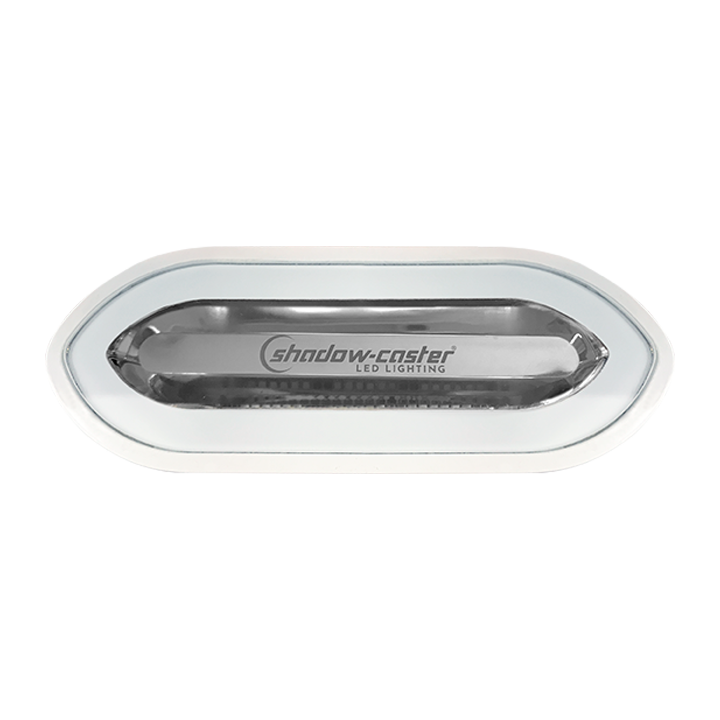

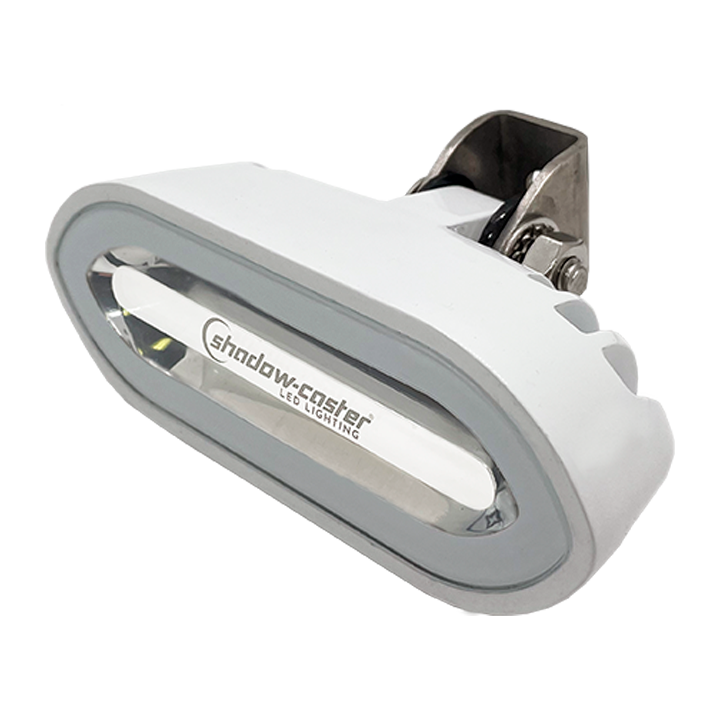

SCM-SLB-GW-WH (bracket mount, white housing)
SCM-SLB-GW-BK (bracket mount, black housing)
White, Blue & Red – 3 color lights
SCM-SLF-WBR-WH (flush mount, white housing)
SCM-SLF-WBR-BK (flush mount, black housing)
SCM-SLB-WBR-WH (bracket mount, white housing)
SCM-SLB-WBR-BK (bracket mount, black housing)
Full Color – 12 color lights

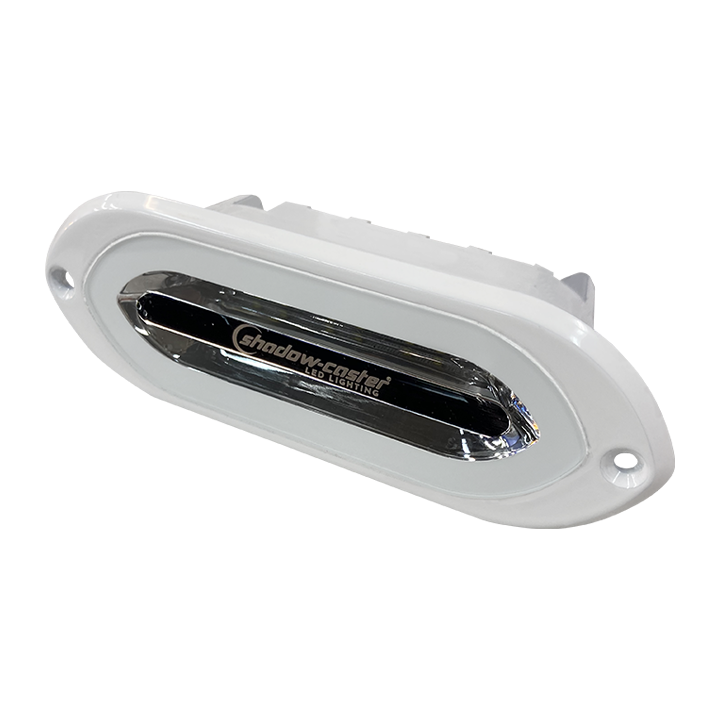

SCM-SLF-CC-WH(flush mount, white housing)

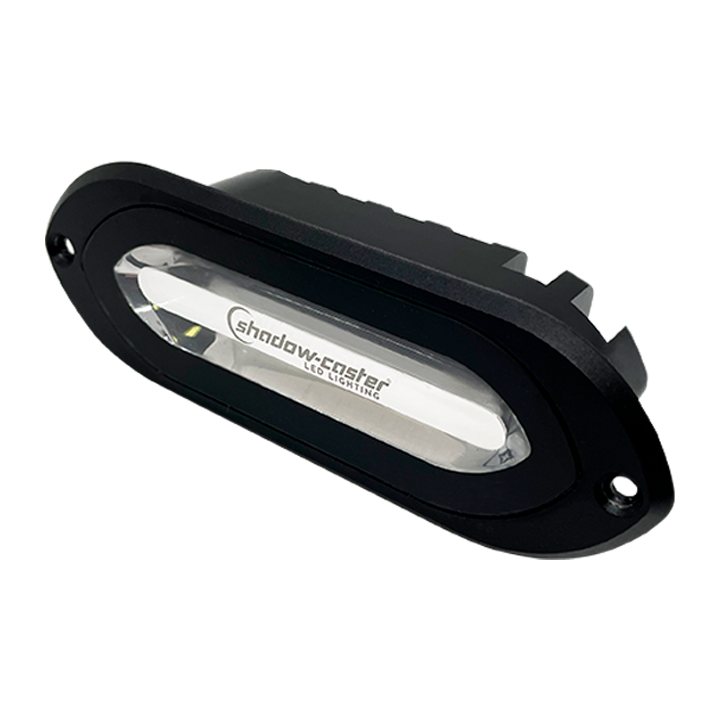

SCM-SLF-CC-BK (flush mount, black housing)

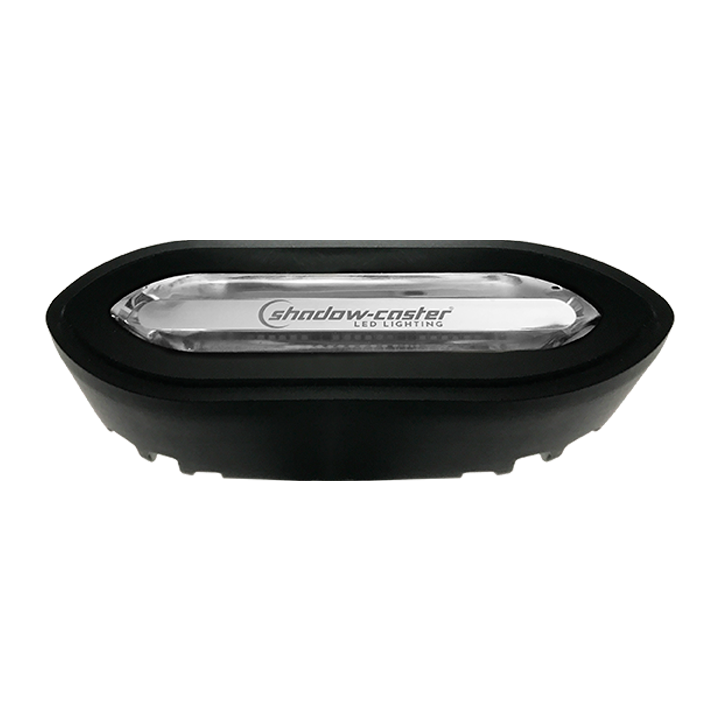

SCM-SLB-CC-WH (bracket mount, white housing)

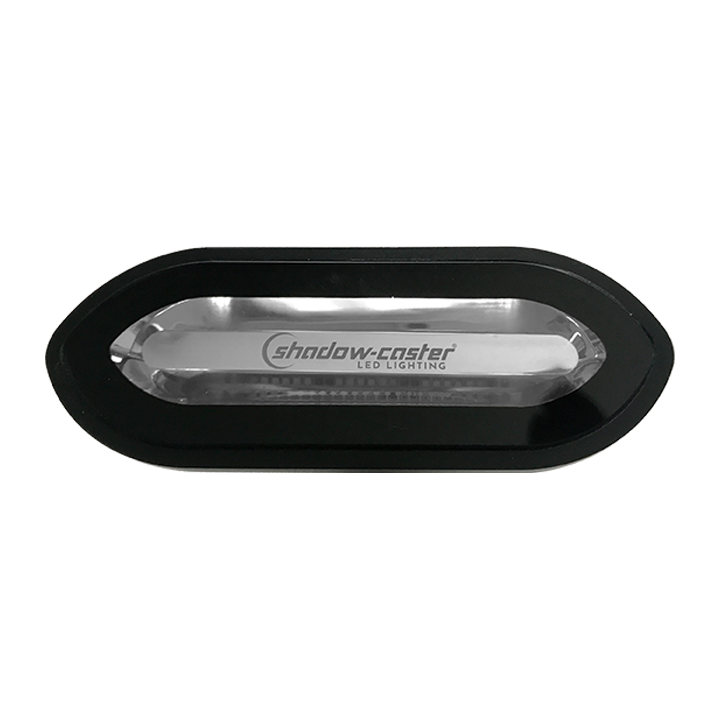

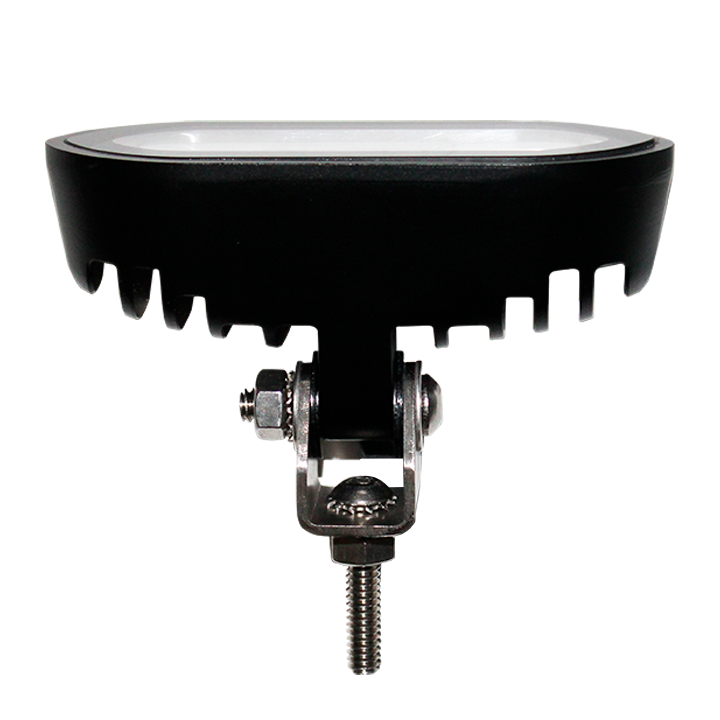

SCM-SLB-CC-BK (bracket mount, black housing)
TECHNICAL INFORMATION
- 2200 lumen output
- 60° beam angle
- 24 watt power draw
- 10-30 volts input
- 2A at 12 volts, 1A at 24 volts
- 6200 Kelvin cool white color temperature
- Durable glass lens
- IP67 waterproof design
- Full color version includes Shadow-NET™ interface for controlling color
- SCM-SLB Series: 4.25″ (108mm) overall width x 1.6″ (41mm) height x 2.8″ (71mm) mounting depth
- SCM-SLF Series: 5″ (127mm) overall width x 1.7″ (43mm) height x 1.6″ (41mm) mounting depth
DOWNLOADS
CONTROL OPTIONS
POWER TOGGLE CONTROL
Quickly toggle power source to advance to next color or brightness level.
SHADOW-NET™ CONTROL
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET™ Light Commander control module (SCM-LC-PLUS).
Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.
SHADOW-NET™ TECHNOLOGY
Shadow-NET™ is a multi-channel communications platform created by Shadow-Caster to allow seamless integration and control of all of your boat’s lighting.
