SINGLE & MULTI-ZONE LIGHTING CONTROL KIT
SCM-ZC-KIT

The Multi Zone Lighting Control Kit SCM-ZC-KIT provides easy control with full Shadow-NET® lighting control functionality. For use with fishing boats, pontoon boats, sports boats and yachts.

KEY FEATURES

  • RGB, RGBW, 2 color and single color lighting
  • Zone control (for multi-zone applications only)
  • Multiple fade mode changes
  • Brightness in each zone
  • 3 versions of music sync
  • Control transition speed, color sequence for multiple fade and strobe modes
WHERE TO BUY?
Shadow-Caster Marine LED Lighting SCM-ZC-REMOTE Multi Zone Lighting Control

ADDITIONAL FEATURES

  • Easy to use, tactile push button interface with dimmable back light
  • Visual indication back light to indicate zone color
  • No extra power switches required – our system will control all on/off power requirements for the lighting including optional Shadow-NET® lights
  • 3-Year Warranty

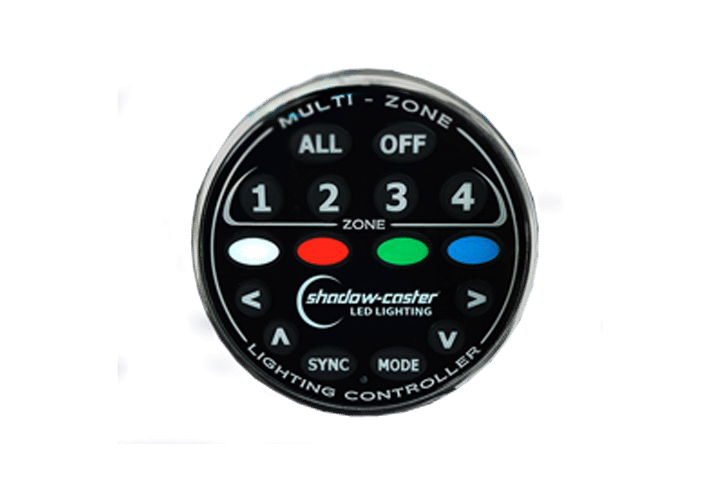

Multi Zone Lighting Control Kit SCM-ZC-KIT Remote Keypad

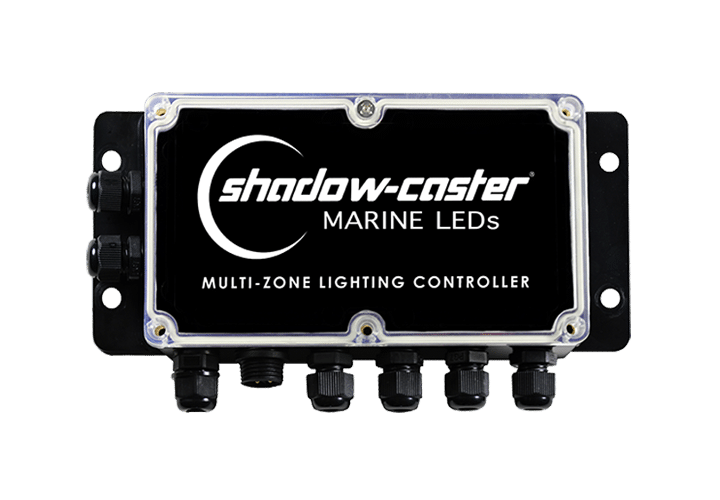

Multi Zone Lighting Control Kit Controller

INCLUDES

  • Multi-Zone Lighting Controller (SCM-MZ-LC)
  • Round Zone Controller Remote (SCM-ZC-REMOTE)
  • Mounting hardware
  • 1 meter Shadow-NET® communication cable PN: SCM-SCNET-01
  • Quick start guide

OPTIONAL SHADOW-NET™ CABLES

2 metre cable
SCM-SCNET-02

4 metre cable
SCM-SCNET-04

Y Cable for Adding SCNET Control Devices
SCM-SCNET-Y

TECHNICAL INFORMATION

  • 4 individually fused 15 amp RGBW lighting connections
  • Compatible with 12/24 volt systems
  • 3.5mm female audio connection for music sync input
  • IP65 washdown rated enclosure
  • Round controller size: 3.6″ (92mm) OD x 0.5″ (13mm) height, mounting hole size 3″ (76mm)
  • UV stabilized polycarbonate housing with stainless steel bezel
  • Machined aluminum rear housing
  • 16 Illuminated buttons

DOWNLOADS

SCM-ZC-KIT Datasheet.pdf
SCM-ZC-KIT Installation & Operation Manual.pdf
SCM-ZC-KIT with Shadow-NET Lights & 4 Zones of RGB Lights Wiring Diagram.pdf
SCM-ZC-KIT & SCM-PD-PLUS with SCM-10-EXT-CC Underwater Lights & 4 Zones of RGB Lights Wiring Diagram.pdf
