MARINE LED COURTESY LIGHT
SCM-CL

The SHADOW-CASTER® marine LED Courtesy Light is an innovative solution for lighting accent areas, hatches, steps, coves, shelves and compartments of your boat or yacht.

The high efficiency marine LED Courtesy Light is available in 5 color output options: single color white; single color blue; single color red; 2 color (white and blue) as well as a full color (RGB) version. Single color versions  can be controlled with a standard switch. Multi-color and full color versions can be controlled with a Shadow-Caster LED controller options.

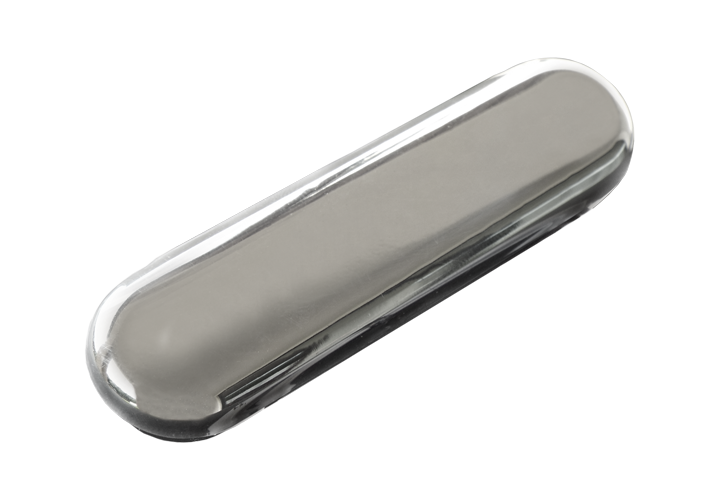

Available with either white or black impact resistant ABS snap-on cover or a polished stainless steel housing.

WHERE TO BUY?
Shadow-Caster MARINE LED COURTESY LIGHT SCM-CL Illuminated White
Shadow-Caster Marine LED Lighting Above Water Light SCM-CL-SS Illuminated Blue

KEY FEATURES

  • Low glare design shines light downward from side emitting housing
  • Single and multi-color versions available
  • Low current draw LED lighting
  • IP67 design makes light suitable for baitwells
  • Available in polished stainless steel or ABS which includes white and black covers
  • Low profile design blends with interior
  • 3-Year Warranty
Shadow-Caster MARINE LED COURTESY LIGHT SCM-CL White
Shadow-Caster MARINE LED COURTESY LIGHT SCM-CL Black
Shadow-Caster Above Water Marine LED Lighting SCM-CL-SS Marine LED Courtesy Light

VIDEOS

COLORS AVAILABLE / PART NUMBER

Full Color
SCM-CL-RGB
SCM-CL-RGB-SS (Stainless Steel)

Bimini Blue/White
SCM-CL-BB/GW
SCM-CL-BB/GW-SS (Stainless Steel)

Bimini Blue
SCM-CL-BB
SCM-CL-BB-SS (Stainless Steel)

Cool Red
SCM-CL-CR
SCM-CL-CR-SS (Stainless Steel)

Great White
SCM-CL-GW
SCM-CL-GW-SS (Stainless Steel)

TECHNICAL INFORMATION

  • Up to 26,000 mCD light output
  • Edge emitting LED lights with 110° viewing angle for single lights and 130° for color changing lights
  • 60mA (single color lights) 120mA (max) (RGB)
  • 10-30 volts input
  • 40,000 hour LED lifetime
  • UV stabilized polycarbonate with submersible enclosure
  • 3″ (76mm) x 0.78” (20mm) x 0.2″ (5mm)
  • 1.5′ (457mm) of 20 awg wire
  • IP67 waterproof design

DOWNLOADS

SCM-CL Datasheet.pdf
SCM-CL Installation Diagram.pdf
