NMEA 2000 LIGHT COMMANDER
SCM-LC

The SHADOW-CASTER™ Light Commander SCM-LC is an NMEA 2000 lighting control based on the newly published NMEA 2000 lighting control standards. Utilization of NMEA 2000 lighting standards enable “next level” implementation of lighting control and marine system integration and system interoperability.

The expandable SC-LC multi-zone lighting controller supports up to 6 zones of lighting per module with native support for 4 zones of RGB or RGBW lights. The lighting controller supports programs including multiple color fade, music sync and color rotation. The Light Commander comes in a fully sealed IP67 housing, with backlit logo design.

KEY FEATURES:
  • NMEA 2000 Backbone or MFD Network Port Connectivity
  • Global control for all lighting
  • Up to 6 separate zones of lighting control – expandable to 18 zones by connecting additional SCM-LC-SCNET modules
  • 6 “Instant ON” switch inputs for enabling lights without MFD control
  • Support for RGB and RGBW lighting
  • Optional wireless connectivity for control from a mobile device (SCM-LC-PLUS version)
WHERE TO BUY?
SCM-LC-NMEA2000-Lighting-Control-BannerShadow-Caster App Tablet and Phone for NMEA 2000 Lighting Control
PRODUCT OVERVIEW VIDEO
ADDITIONAL FEATURES
  • IP67 Water resistant housing with waterproof connections
  • Deutsch style IP67 rated connections, for clean OEM installations
  • All in one design, no need for a separate MFD communication bridge
  • “Digitally fused” over current protection circuits, 15amps/channel (X4)
  • Backlit logo and zone indicator LEDs to indicate functions and operation
  • Built in 3.5mm female audio port and microphone for music sync input
INTERFACING TO THE LIGHT COMMANDER

NMEA 2000

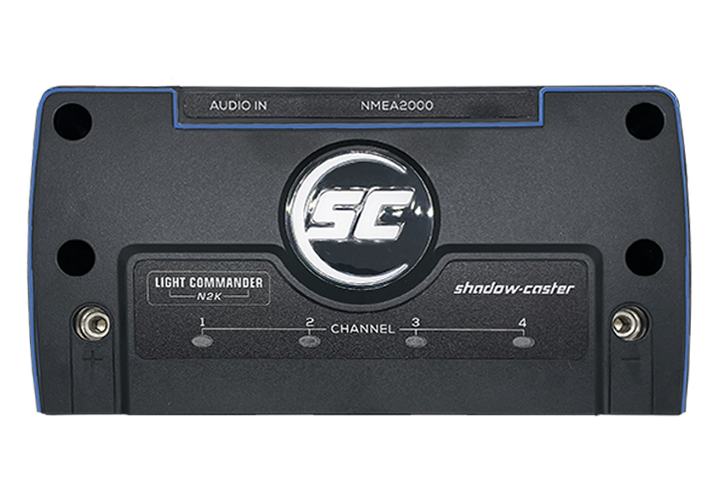

With the release of industry standardized NMEA 2000 lighting control protocols, plug and play lighting controller compatibility is here. Simply connect to the NMEA 2000 backbone with either the SCM-LC-N2K or SCM-LC-PLUS.

NMEA 2000 logo

NETWORK INTERFACE

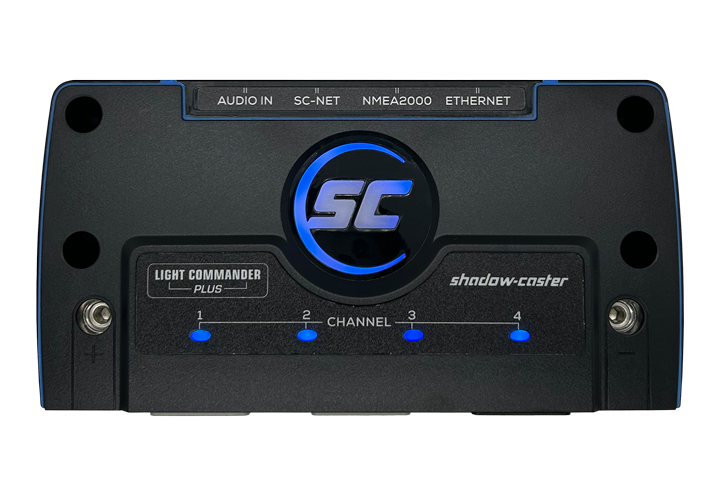

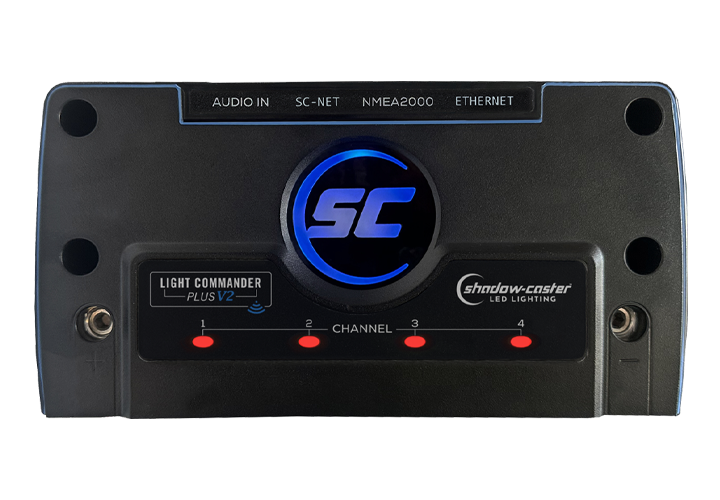

To connect to your compatible MFD and utilize the SHADOW-CASTER™ custom lighting interface to create lighting scenes, customize and name zones and assign devices to zones, use the SCM-LC-PLUS. Compatible with Garmin, Simrad, Lowrance, B&G, Raymarine, and Furuno.

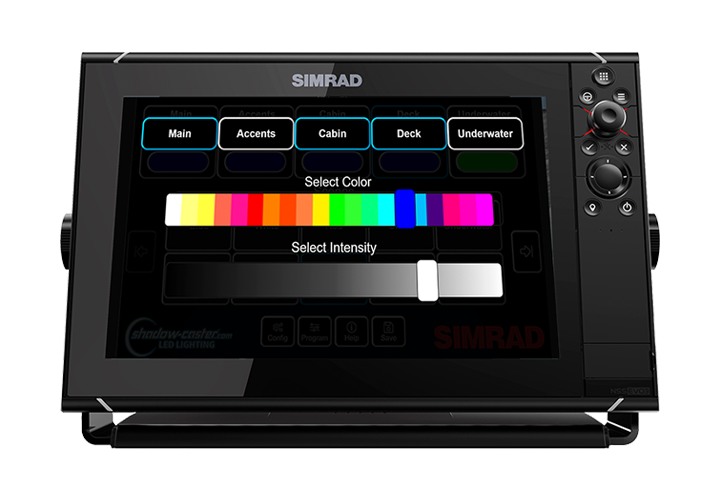

NMEA 2000 MFD

CELL PHONE APP COMPATIBLE
Use the SCM-LC-PLUS to utilize the SHADOW-CASTER™ custom Android app to seamlessly switch control from your Network MFD, NMEA200 interface to your mobile device, create and manage your library of lighting scenes and lights.

Shadow-Caster App Tablet and Phone for NMEA 2000 Lighting Control

SCM-ZC-REMOTE
Use the SHADOW-CASTER™ backlit Zone Controller keypad (SCM-ZC-REMOTE) with the SCM-LC-SCNET to instantly control 4 zones of lighting through a backlit keypad.

SCM-ZC-REMOTE
PART NUMBERS
TECHNICAL INFORMATION
  • IP67 rated enclosure
  • Power: Supports over 600 watts of RGB lighting and virtually limitless Shadow-NET™ connected modules
  • 15 amps per RGB(W) zone, 60 amps max
  • 10 to 30V input range
  • Direct 3.5mm female audio input for music synchronization
  • Optional Wi-Fi/Bluetooth ‘PLUS version’ only connectivity to support SHADOW-CASTER™ Light Commander Mobile app
  • Music sync created by onboard DSP (Digital Signal Processing)
  • Shadow-NET™ bus allows system expandability
  • Digital power protection set at 15amps/channel
  • Built in switch inputs for instant on lighting for each zone
  • 24-bit color support and gamma correction for universal color support
  • Enclosure: 8.9” (226mm ) x 4.75” (120mm) x 1.8” (46mm)
