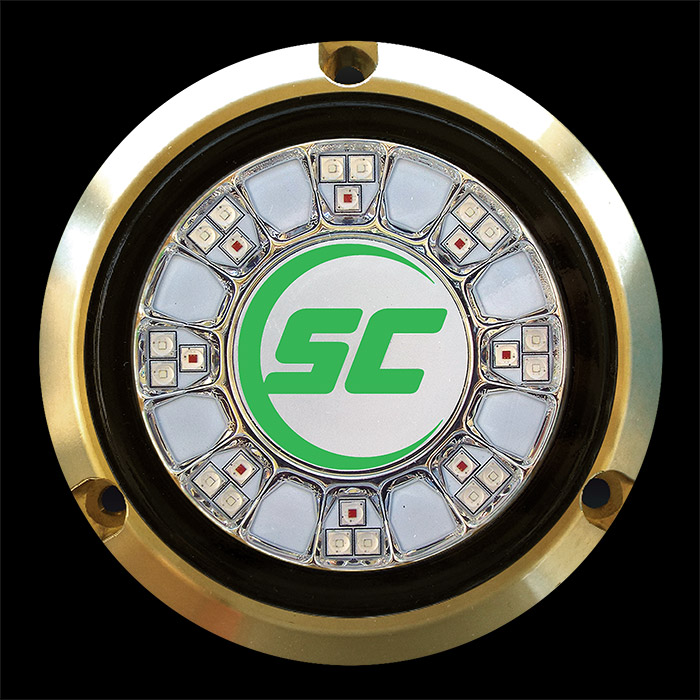

24 LED ROUND UNDERWATER MARINE LIGHT
SCR-24
The SCR-24 is a 24 LED round underwater marine light and provides your vessel with 90 watts of intense LED lighting. The SCR-24’s are designed within a compact 4″ diameter bronze housing for under waterline surface mounting. Single or multi-color versions available with variable brightness and a wide array of control options.
KEY FEATURES
- Proprietary clear-gel-filled design, injected through entire unit — eliminates condensation and/or water intrusion under stress
- Tough, scratch resistant, tempered glass lens with bronze housing — impervious to acetone, solvents and demanding marine environments
- Transient surge and reverse polarity protection — dramatically prolongs unit life
- Thermal throttling technology — enables safe operation even out of water
- From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
- Full color light “CC” has 12 built-in colors, and can be enabled with unlimited colors and many other advanced features using Shadow-NET
- 3-Year Warranty
COLORS AVAILABLE / PART NUMBER
Full Color – 12-color standard, or unlimited colors with Shadow-NET®
SCR-24-CC-BZ-10
Blue & White
SCR-24-BW-BZ-10
Bimini Blue
SCR-24-BB-BZ-10
Aqua Green
SCR-24-AG-BZ-10
Great White
SCR-24-GW-BZ-10
CONTROL OPTIONS
POWER TOGGLE CONTROL
Quickly toggle power source to advance to next color or brightness level.
Used with a single color lights allows for light on/off, fade in/out and strobe.
Two color lights allows either single color on, fade between colors and strobe current color.
Full color lights allow for any single color on, fade blue to white, fade through all 12 colors and strobe current color.
PUSH BUTTON CONTROL
Connect to any push button controller. Ask about Shadow-Caster’s highest quality, marine-grade push button controllers, optimized to work seamlessly with your lighting requirements.
Used with a single color lights allows for light on/off, fade in/out and strobe.
Two color lights allows either single color on, fade between colors and strobe current color.
Full color lights allow for any single color on, fade blue to white, fade through all 12 colors and strobe current color.
SHADOW-NET™ CONTROL
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC) & app.
Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.
SHADOW-NET® TECHNOLOGY
TECHNICAL INFORMATION
-
Up to 7,500 lumens
-
120° beam angle
-
90 watts power draw
-
7.8 amps operating current draw @ 12 volts
-
10-30 volts input
-
4″ (102 mm) OD
-
IP68 fully submersible waterproof design
DOWNLOADS
