UNDERWATER MARINE LIGHT
SCM SERIES
SCM SERIES underwater marine lights provide your vessel with up to 42 watts of intense LED lighting (SCM-10-EXT-CC model). A low profile design allows for many mounting locations and unique stainless steel housing compliments the look of any trailer or lift kept boat.
KEY FEATURES
- Proprietary clear-gel-filled design, injected through entire unit – eliminates condensation and/or water intrusion under stress
- Tough, Polycarbonate lens
- Passivated Stainless Steel 316 material provides a durable corrosion resistant housing
- Transient surge and reverse polarity protection – dramatically prolongs unit life
- Thermal throttling technology – enables safe operation even out of water
- From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
- 3-Year Warranty
SCM-10-EXT-CC
SPECIFICATIONS
- Up to 3,750 lumens
- 120 degree beam angle
- 42 watts power draw
- 3.5 amps operating current draw @ 12 volts
- 10-30 volts input
- 10” (254 mm) x 2.4” (61mm) x 0.5” (13mm)
- IP68 fully submersible waterproof design
- 10 RGBW LEDs
COLORS / PART NUMBER
RGBW
SCM-10-EXT-CC
DOWNLOADS
CONTROL OPTIONS
POWER TOGGLE CONTROL
Quickly toggle power source to advance to next color.
SHADOW-NET® CONTROL
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC-KIT) & app.
PUSH BUTTON CONTROL
Connect to any push button controller. Ask about Shadow-Caster’s highest quality, marine-grade push button controllers, optimized to work seamlessly with your lighting requirements.
Used with a single color lights allows for any single color on/off, fade blue to white, fade through all 12 colors and strobe current color.
SCM-10
SPECIFICATIONS
- Up to 4,000 lumens
- 120 degree beam angle
- 42 watts power draw
- 3.5 amps operating current draw @ 12 volts
- 10-30 volts input
- 10” (254 mm) x 2.4” (61mm) x 0.5” (13mm)
- IP68 fully submersible waterproof design
- 10 single color LEDs
DOWNLOADS
COLORS AVAILABLE / PART NUMBER
Bimini Blue
SCM-10-BB-20
Ultra Blue
SCM-10-UB-20
Aqua Green
SCM-10-AG-20
Cool Red
SCM-10-CR-20
Great White
SCM-10-GW-20
SCM-6
SPECIFICATIONS
- Up to 2,400 lumens
- 120 degree beam angle
- 24 watts power draw
- 2.0 amps operating current draw @ 12 volts
- 10-30 volts input
- 7.2” (183 mm) x 2.4” (61mm) x 0.5” (13mm)
- IP68 fully submersible waterproof design
- 6 single color LEDs
DOWNLOADS
COLORS AVAILABLE / PART NUMBER
Bimini Blue
SCM-6-BB-20
Ultra Blue
SCM-6-UB-20
Aqua Green
SCM-6-AG-20
Cool Red
SCM-6-CR-20
Great White
SCM-6-GW-20
SCM-4
SPECIFICATIONS
- Up to 1,600 lumens
- 120 degree beam angle
- 17 watts power draw
- 1.4 amps operating current draw @ 12 volts
- 10-30 volts input
- 5.8” (183 mm) x 2.4” (61mm) x 0.5” (13mm)
- IP68 fully submersible waterproof design
- 4 single color LEDs
DOWNLOADS
COLORS AVAILABLE / PART NUMBER
Bimini Blue
SCM-4-BB-20
Ultra Blue
SCM-4-UB-20
Aqua Green
SCM-4-AG-20
Cool Red
SCM-4-CR-20
Great White
SCM-4-GW-20
RELATED PRODUCTS
SCM-LC-N2K-PLUS-V2
SCM-LC-N2K-PLUS-V2
SCM-LCX_front_700x520

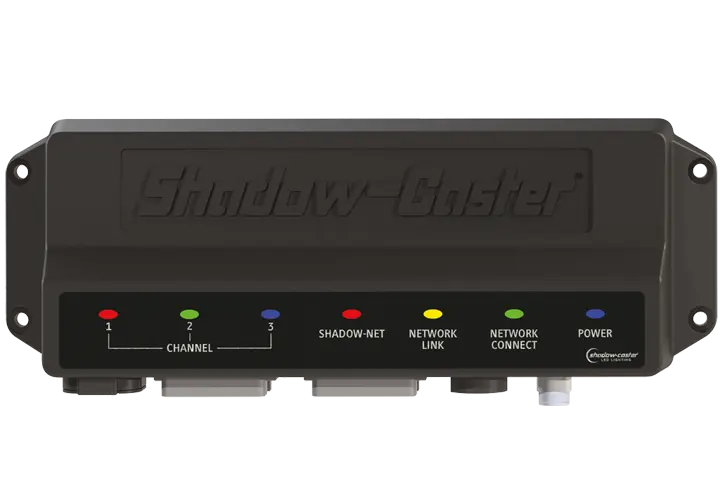

SCM-LCX-N2K
SCM-SWITCH-O-O-M_720x500

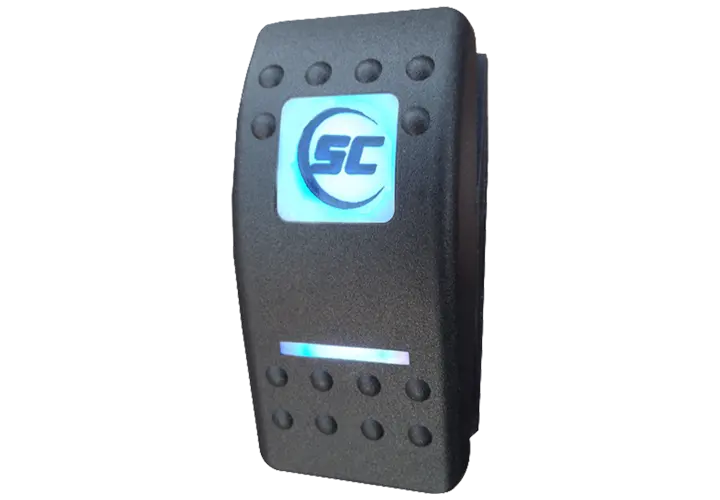

SCM-SWITCH
SCR-64-CC-BZ-10_front_angle_720x500

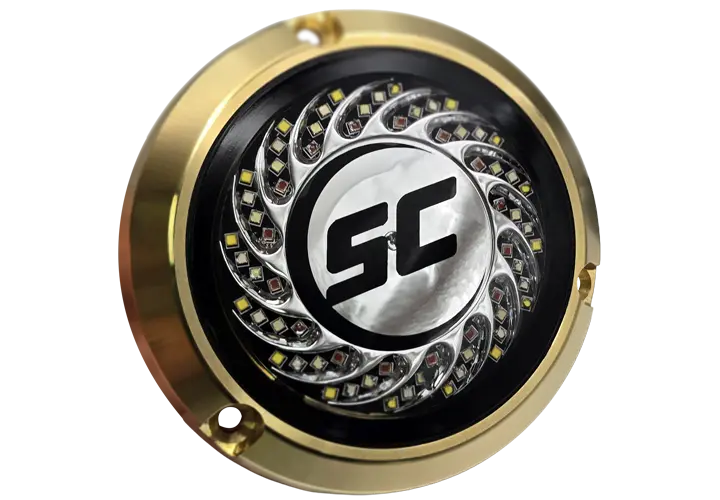

SCR-64
