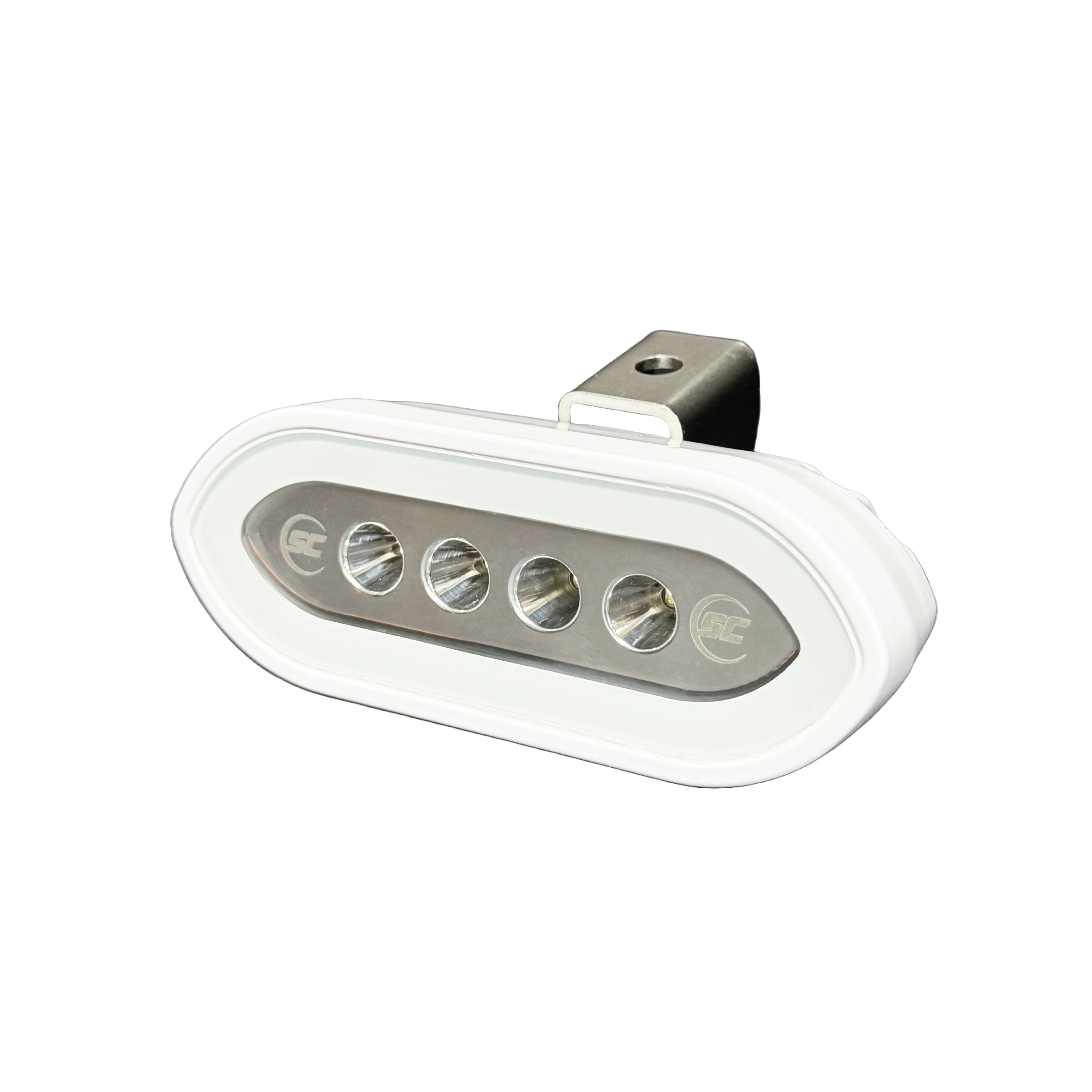

MARINE LED SPREADER LIGHT
SCM-SL4X

The SHADOW-CASTER® marine LED Spreader Light SCM-SL4X is perfect for illuminating decks and other large areas of your boat or yacht.  It has a unique reflector design which spreads the light beams out to reduce glare.

The marine LED Spreader Light 4X comes in black or white finish. It is available in single color white. The brightness can be controlled with a standard switch or Shadow-Caster Light Commander controller and NMEA 2000 interface.

The flush mount version is great for mounting in T-Tops or use the bracket mount version to retrofit existing installations.

WHERE TO BUY?

KEY FEATURES

  • Soft start technology ramps the brightness up gently over 2 seconds
  • Power toggle feature to set brightness
  • True white LED for best color performance
  • Unique reflector design to reduce glare
  • High efficiency switch mode power supply
  • Waterproof low-profile aluminum housing
  • White or black finish
  • 3-Year Warranty

COLORS AVAILABLE / PART NUMBER

Great White – 1 color light
SCM-SLF4X-GW-WH (flush mount, white housing)
SCM-SLF4X-GW-BK (flush mount, black housing)
SCM-SLB4X-GW-WH (bracket mount, white housing)
SCM-SLB4X-GW-BK (bracket mount, black housing)

TECHNICAL INFORMATION

  • 3000 lumen output
  • 60° beam angle
  • 24 watt power draw
  • 10-30 volts input
  • 1.5 amps
  • 6200 Kelvin cool white color temperature
  • Durable glass lens
  • IP67 waterproof design
  • SCM-SLB4X Series: 4.25″ (108mm) overall width x 1.6″ (41mm) height x 2.8″ (71mm) mounting depth
  • SCM-SLF4X Series: 5″ (127mm) overall width x 1.7″ (43mm) height x 1.6″ (41mm) mounting depth

DOWNLOADS

SCM-SLB Series Datasheet.pdf
SCM-SLF Series Datasheet.pdf
SCM-SLB-GW Installation & Operation Instructions.pdf
SCM-SLF-GW Installation & Operation Instructions.pdf

CONTROL OPTIONS

POWER TOGGLE CONTROL
Quickly toggle power source to adjust brightness level.

SHADOW-NET® CONTROL
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® Light Commander control module (SCM-LC-N2K-PLUS-V2) & app.

Dramatically enhanced lighting capabilities through your existing MFD allows for fading, dimming, strobe rate, music sync, multiple zones and much more.
