3″ ROUND UNDERWATER MARINE LIGHT
SC3
The SC3 Series 3″ round underwater marine light provide your vessel with 24 watts of intense LED lighting. The SC3’s are designed with a sub-compact 3” diameter hard anodized aluminum or bronze housing for under the waterline surface mounting. Single color or color changing versions available with variable brightness and a wide array of control options.
Note: The Aluminum models (SC3-ALSM) should only be used on trailer or lift kept boats, and not live in the water boats.
KEY FEATURES
- Proprietary clear-gel-filled design, injected through entire unit — eliminates condensation and/or water intrusion under stress
- Tough, scratch resistant, tempered glass lens with hard anodized aluminum or bronze housing — impervious to acetone, solvents and demanding marine environments. (Note: Aluminum models (SC3-ALSM) should only be used on trailer or lift kept boats, and not live in the water boats).
- Transient surge and reverse polarity protection — dramatically prolongs unit life
- Thermal throttling technology — enables safe operation even out of water
- From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
- 3-Year Warranty
COLORS AVAILABLE / PART NUMBER
Full Color – 12-color standard, or unlimited colors with Shadow-NET®

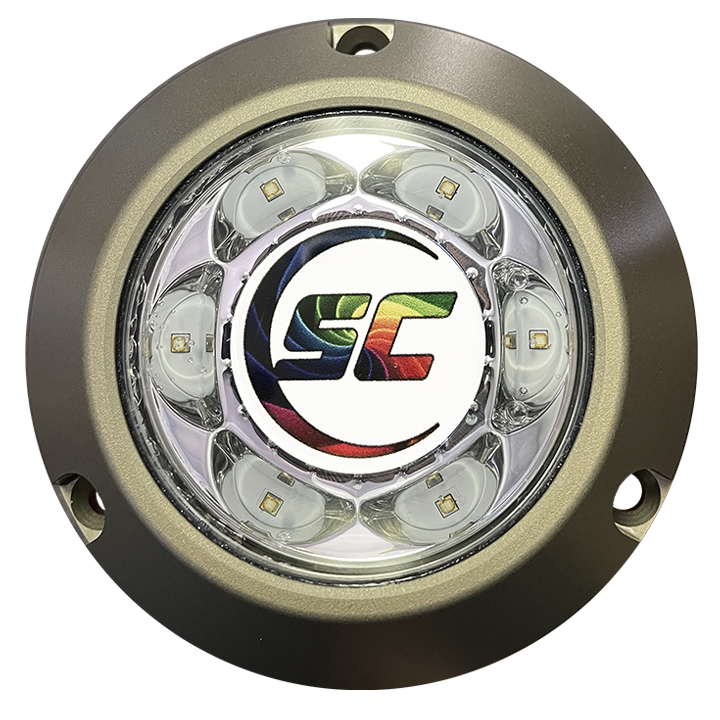

SC3-CC-ALSM (Alu)

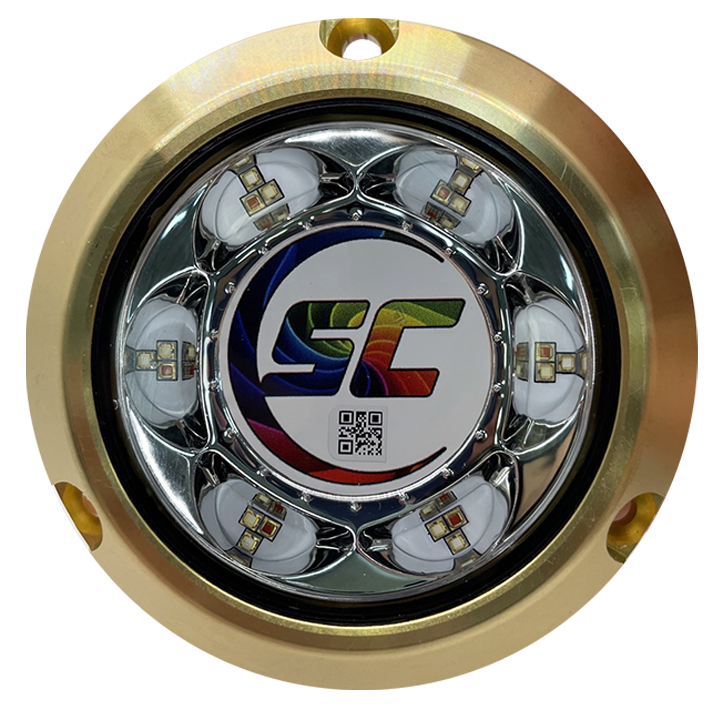

SC3-CC-BZSM (Bronze)
Blue & White

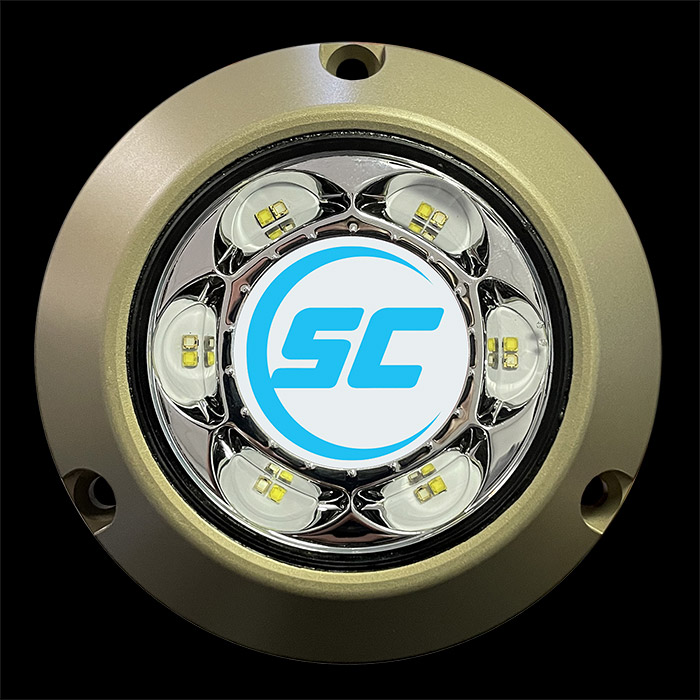

SC3-BW-ALSM (Alu)
SC3-BW-BZSM (Bronze)
Bimini Blue

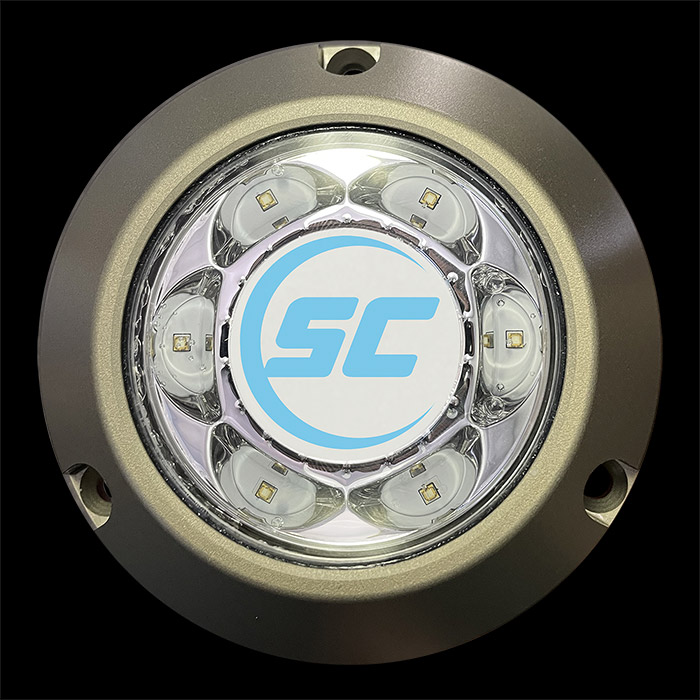

SC3-BB-ALSM (Alu)
SC3-BB-BZSM (Bronze)
Great White
SC3-GW-ALSM (Alu)
SC3-GW-BZSM (Bronze)
CONTROL OPTIONS
POWER TOGGLE CONTROL
Quickly toggle power source to advance to next color or brightness level.
Full color lights allow for any single color on, fade blue to white, fade through all 12 colors and strobe current color.
SHADOW-NET® CONTROL
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® Light Commander control module (SCM-LC-N2K-PLUS-V2) & app.
Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.
SHADOW-NET® TECHNOLOGY
TECHNICAL INFORMATION
-
Up to 3,000 lumens
-
120° beam angle
-
24 watts power draw
-
2 amps operating current draw @ 12 volts
-
10-30 volts input
-
SC3-ALSM Series: 3.6″ (92 mm) OD
- SC3-BZSM Series: 3.4″ (86 mm) OD
-
IP68 fully submersible waterproof design
- Note: Aluminum models (SC3-ALSM) should be used on trailer or lift kept boats only, and not live in the water boats.
