16 LED ROUND UNDERWATER MARINE LIGHT
SCR-16

The SCR-16 is a 16 LED round underwater marine light and provides your vessel with 60 watts of intense LED lighting. The SCR-16’s are designed within a compact 4″ diameter bronze housing for under waterline surface mounting. Single or two-color versions available with variable brightness and a wide array of control options.

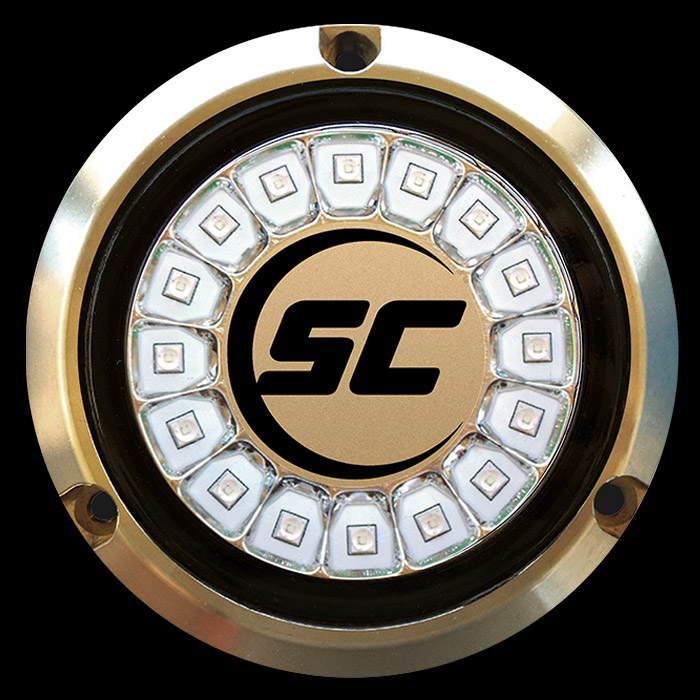

Shadow-Caster 16 led round underwater boat light SCR-16

KEY FEATURES

  • Proprietary clear-gel-filled design, injected through entire unit – eliminates condensation and/or water intrusion under stress
  • Tough, scratch resistant, tempered glass lens with bronze housing – impervious to acetone, solvents and demanding marine environments
  • Transient surge and reverse polarity protection – dramatically prolongs unit life
  • Thermal throttling technology – enables safe operation even out of water
  • From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
  • 3-Year Warranty

COLORS AVAILABLE / PART NUMBER

CONTROL OPTIONS

POWER TOGGLE CONTROL
Quickly toggle power source to advance to next color or brightness level.

Used with a single color lights allows for light on/off, fade in/out and strobe.

Two color lights allows either single color on, fade between colors and strobe current color.

PUSH BUTTON CONTROL
Connect to any push button controller. Ask about Shadow-Caster’s highest quality, marine-grade push button controllers, optimized to work seamlessly with your lighting requirements.

Used with a single color lights allows for light on/off, fade in/out and strobe.

Two color lights allows either single color on, fade between colors and strobe current color.

SHADOW-NET® CONTROL
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC) & app.

Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.

TECHNICAL INFORMATION

  • Up to 7,000 lumens
  • 120° beam angle
  • 60 watts power draw
  • 5 amps operating current draw @ 12 volts
  • 10-30 volts input
  • 4” (102 mm) OD
  • IP68 fully submerisble waterproof design
