MARINE SMALL ROUND ACCENT LIGHTS
SCM-RAL SERIES

SHADOW-CASTER® Small Round LED Accent Lights “RAL” products are designed for lighting small areas around your vessel. Choose the correct product based on your mounting location and application.

SHADOW-CASTER® Round Accent Lights support a variety of mounting configurations for anything from small hatches, cup holders, toe kick areas, walk way illumination, map lighting, baitwells and cooler areas.

All of SHADOW-CASTER® RGB Accent Lights are designed to work with Shadow-Caster’s innovative line up of lighting controllers.

WHERE TO BUY?

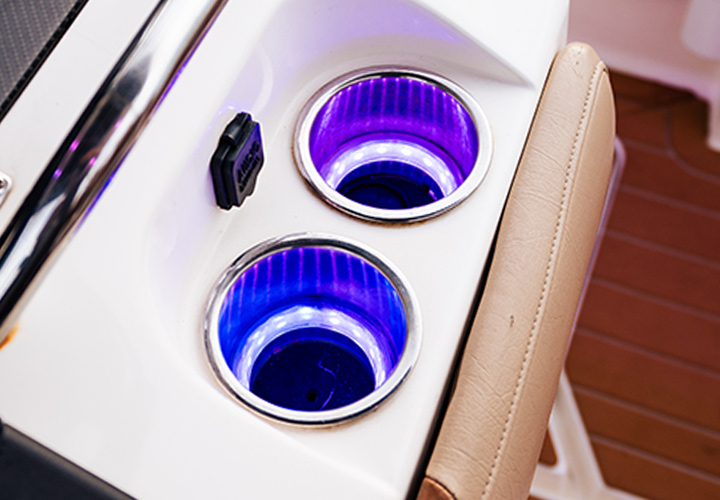

SCM-RAL Series Small Round LED Accent Lights illuminating two cup holders

DIMENSIONS

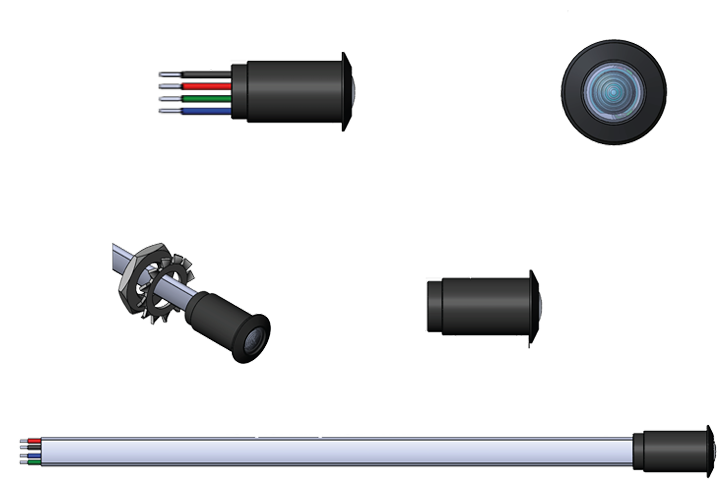

SCM-RAL-RGB-0.4-AB

Small Round LED Accent Lights 0.4" dimensions

SCM-RAL-RGB-0.4-PW

Small Round LED Accent Lights 0.4" dimensions

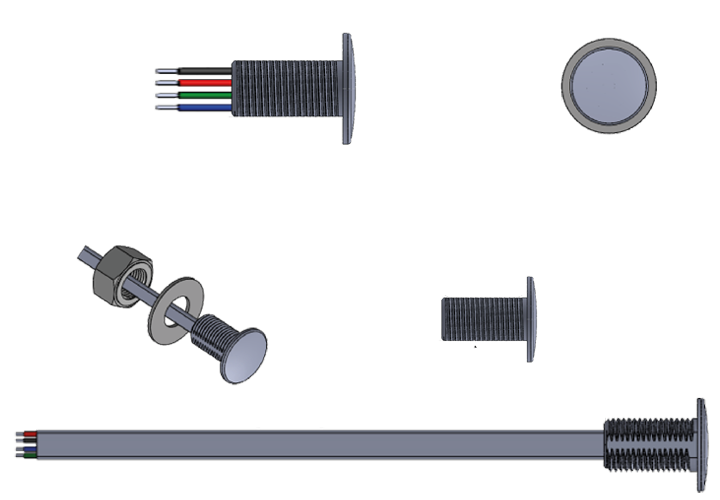

SCM-RAL-RGB-0.5

Small Round LED Accent Lights 0.5" dimensions

COLORS AVAILABLE / PART NUMBER

Small RGB Accent Light (black anodised aluminum housing)
SCM-RAL-RGB-0.4-AB

Small RGB Accent Light (white polymer housing)
SCM-RAL-RGB-0.4-PW

Large RGB Accent Light (polycarbonate housing)
SCM-RAL-RGB-0.5

VIDEOS

TECHNICAL INFORMATION

SCM-RAL-RGB-0.4-AB SCM-RAL-RGB-0.4-PW SCM-RAL-RGB-0.5
Recommended Applications Cup holders and other panel mount applications Cup holders, hatches, and toe kick area lighting Large hatches, baitwells, coolers and other accent areas
IP Rating IP65 IP67 IP68
Materials Aluminum black anodized housing and polycarbonate window Diffused polymer white housing Polycarbonate
Thread 3/8- 32 none 1/2-20
Recommended Hole Diameter 0.41” 0.375” 0.53”
Current Channel 20mA, 60mA total 20mA, 60mA total 30mA, 90mA total
Voltage 12V only 12V only 12V only
Lead Wire Length 18”/0.5m 18”/0.5m 18”/0.5m
Hardware Included Panel nut and star washer none Nylon nut and rubber washer

DOWNLOADS

SCM-RAL Series Datasheet.pdf
