UNDERWATER MARINE LIGHT
SABRE SERIES

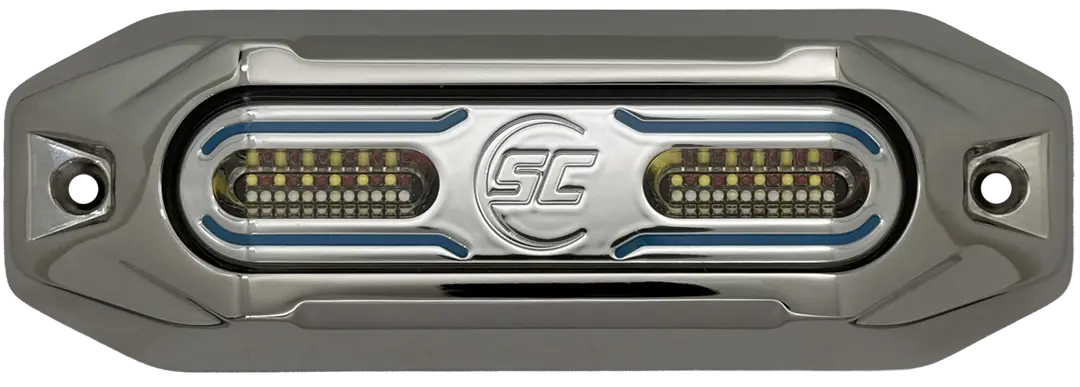

Introducing Sabre, a next-generation underwater light combining a sleek, low-profile oblong design with advanced LED technology for exceptional brightness and efficiency. A precision polished stainless billet-style housing and durable borosilicate glass window deliver a premium appearance built for the marine environment.
Advanced RGBW LEDs with dedicated true-white output provide brilliant white illumination and vibrant full-color capability, while a highly efficient power supply maximizes light output while minimizing energy consumption. Sabre operates stand-alone from a switch or integrates seamlessly with Shadow-NET® for complete control and MFD integration.
Next-generation brightness. Premium design. Exceptional efficiency.
KEY FEATURES
- Low-profile sleek design featuring polished stainless steel housing.
- Flexible mounting options.
- Shadow-NET enabled.
- IP68 fully-submersible design.
- Tempered Boroscilicate Glass windows.
SPECIFICATIONS
- Up to 10,000 lumens.
- 120° beam angle horizontally; 80° vertical.
- RGBW design (true Cool White channel for optimal brightness).
- Power draw: 72 Watts; 6A at 12V, 3.1A at 24V.
- Input Voltage: 10-30 Volts.
- 7” (180mm) length; 2.4” (61mm) width; 0.6in (15.9mm) height.
- 6ft of submersible-grade cable.
COLORS AVAILABLE / PART NUMBER
RGBW
SCR-SABRE-CC-BZSM
Blue & White
SCM-SABRE-BW-BZSM
Bimini Blue
SCM-SABRE-BB-BZSM
Great White
SCM-SABRE-GW-BZSM
CONTROL OPTIONS
POWER TOGGLE CONTROL
- Quickly toggle power source to advance to next color or brightness level.
- Used with a single color lights allows for light on/off, fade in/out and strobe.
- Two color lights allows either single color on, fade between colors and strobe current color.
- Full color lights allow for any single color on, fade blue to white, fade through all 12 colors and strobe current color.
SHADOW-NET™ CONTROL

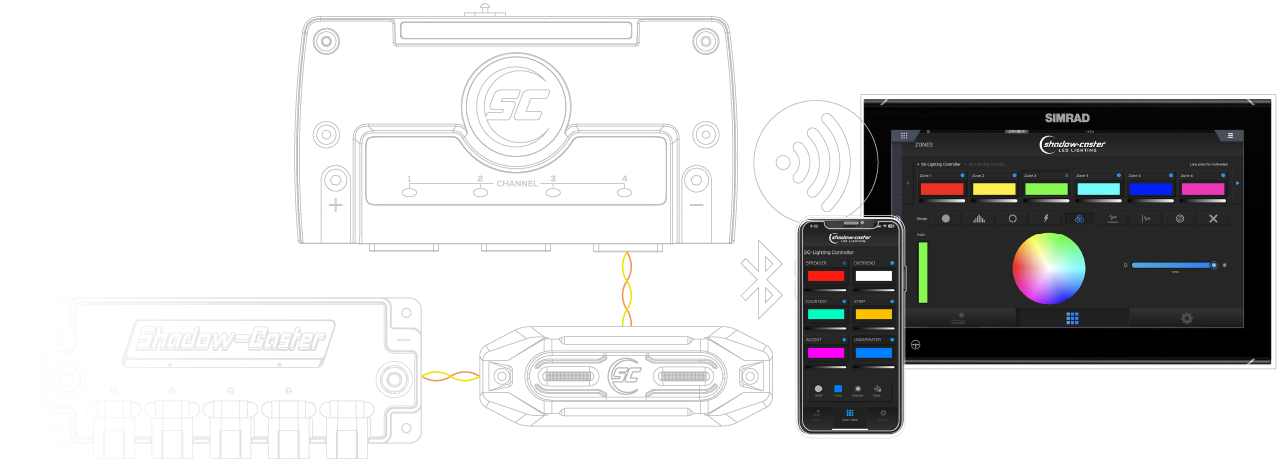

Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC) & app.
Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.
SHADOW-NET®
Shadow-NET® is a multi-channel communications platform created by Shadow-Caster to allow low-cost, seamless integration and control of all your boat’s lighting and real-time lighting control for multiple zones. Individually control the color and intensity of each light through interfaces which include NMEA 2000, MFD on-screen interfaces, and Wifi/Bluetooth connected applications.
- Works as a network, allowing all lights to be connected together and dynamically controlled.
- Energy-efficient and scalable solution allows
high levels of system configurability. - Highly practical for implementation.
