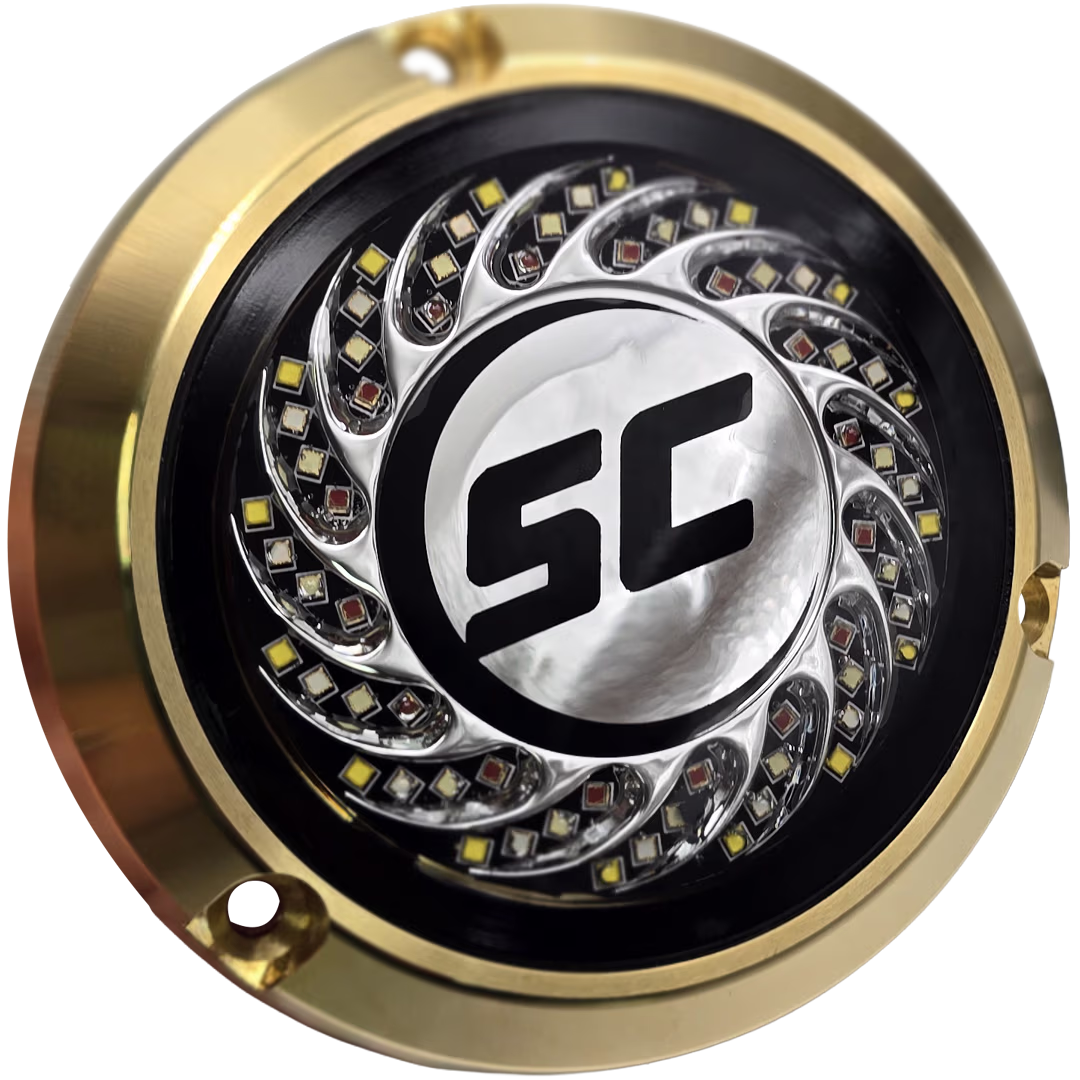

64 LED ROUND UNDERWATER MARINE LIGHT
SCR-64
Experience next-generation underwater illumination with the Shadow-Caster SCR-64. Featuring 64 high-performance LEDs with full-color change and a dedicated white channel for extra brilliance, the SCR-64 delivers exceptional output and vibrant color. Its bronze housing and borosilicate glass window provide rugged marine durability, while an advanced constant-power design and next-generation LED and power supply efficiency maximize performance. Shadow-NET capability enables seamless integration with compatible MFD systems for convenient onboard control. The next level of underwater lighting has arrived.
KEY FEATURES
- Proprietary gel-filled design to always maintain leak protection and IP68 requirements.
- Tough, scratch resistant, tempered glass lens with bronze housing — impervious to acetone, solvents and demanding marine environments.
- Transient surge and reverse polarity.
protection — dramatically prolongs unit life. - Bronze or Hard Anodized Aluminum housing options.
- True White Channel for extra brilliance.
- Shadow-NET® Enabled.
Footprint is compatible with the existing range of SCR series lights.
SPECIFICATIONS
- 12,000 lumens.
- 120 degree beam angle.
- Power Draw: 94 Watts; 7.8A at 12V, 3.8A at 24V.
- Input Voltage: 10-30 Volts.
- True White Channel for extra brilliance.
- Color Changing RGBW.
- IP68 fully submersible design.
- Power Toggle Control for standalone control from a switch.
- 4” (102mm) OD.
COLORS AVAILABLE / PART NUMBER
RGBW
SCR-64-CC-BZ-10
CONTROL OPTIONS
POWER TOGGLE CONTROL
- Quickly toggle power source to advance to next color or brightness level.
- Used with a single color lights allows for light on/off, fade in/out and strobe.
- Two color lights allows either single color on, fade between colors and strobe current color.
- Full color lights allow for any single color on, fade blue to white, fade through all 12 colors and strobe current color.
SHADOW-NET™ CONTROL
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC) & app.
Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.
SHADOW-NET®

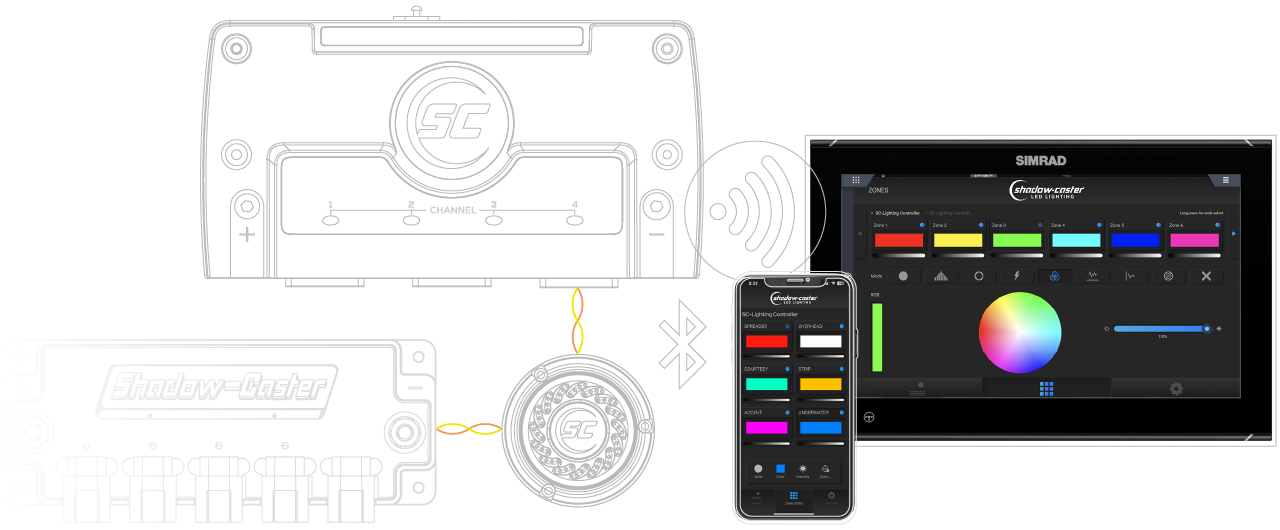

Shadow-NET is a multi-channel communications platform created by Shadow-Caster to allow low-cost, seamless integration and control of all your boat’s lighting and real-time lighting control for multiple zones. Individually control the color and intensity of each light through interfaces which include NMEA 2000, MFD on-screen interfaces, and Wifi/Bluetooth connected applications.
- Works as a network, allowing all lights to be connected together and dynamically controlled.
- Energy-efficient and scalable solution allows
high levels of system configurability. - Highly practical for implementation.
GET THE APP
GET THE APP
DOWNLOADS
RELATED PRODUCTS
SCM-LC-N2K-PLUS-V2
SCM-LC-N2K-PLUS-V2
SCM-DLC-3CH
SCM-DLC-3CH
SCM-PD4CH-720×500-2
SCM-PD4CH

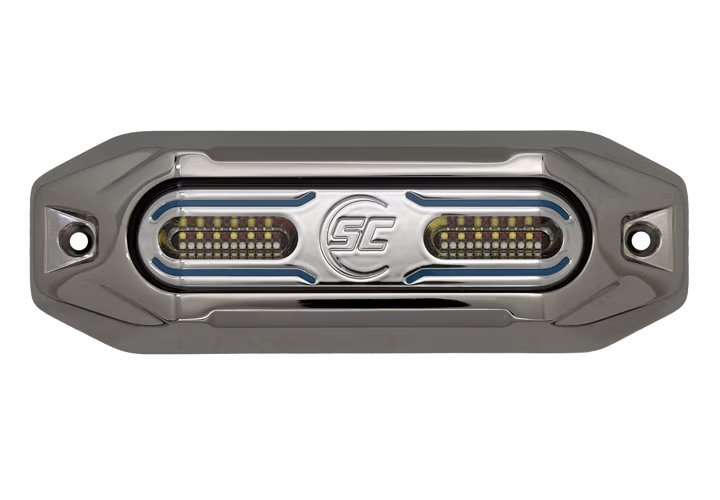

SABRE SERIES
