3″ UNDERWATER PONTOON BOAT LIGHT
SC3-ALTB

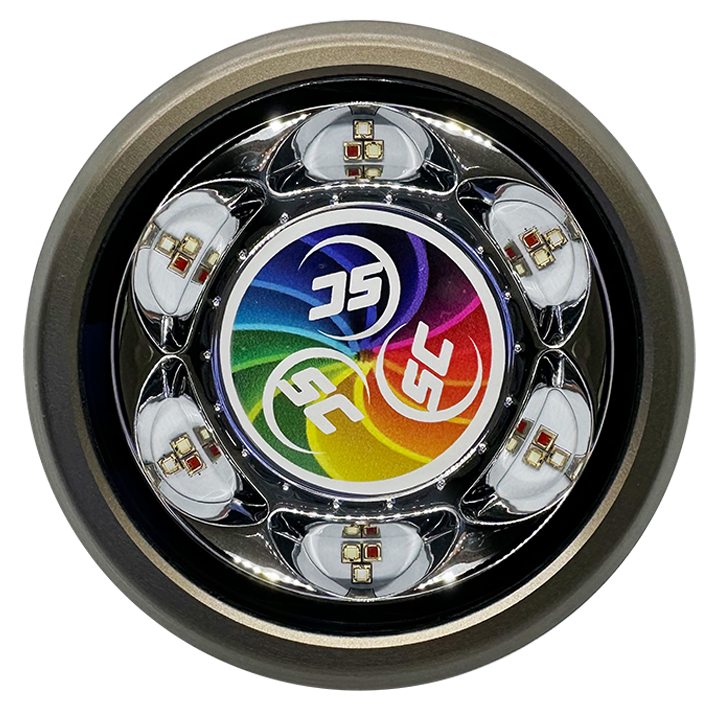

The SHADOW-CASTER® SC3-ALTB 3″ underwater pontoon boat light is designed for pontoon boat bracket mounting. The SC3-Pontoon light with its small 3” diameter and single bolt installation make it the ideal light to compliment your aluminum hull pontoon boat. The glass window and aluminum design combined with the SHADOW-CASTER’™ made in America design make this the ideal choice for pontoon boats.
These 3″ underwater pontoon boat lights are available in an RGB version as well as single color white or single color blue.
Note: the SC3-ALTB is designed for freshwater use on trailer and lift kept boats only.
KEY FEATURES
- Proprietary clear gel-filled design, injected through entire unit —eliminates condensation and/or water intrusion under stress
- Tough, scratch resistant, tempered glass lens with hard anodized aluminum housing — impervious to acetone, solvents and demanding marine environments
- Transient surge and reverse polarity protection — dramatically prolongs unit life
- RGB version compatible with most standard RGB controllers
- Integrated thermal protection for safe operation out of water
COLORS AVAILABLE / PART NUMBER
RGB or unlimited colors with Shadow-NET® controller
SC3-RGB-ALTB
Bimini Blue
SC3-BB-ALTB
Great White
SC3-GW-ALTB
CONTROL OPTIONS
SHADOW-NET® CONTROL
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® Light Commander control module (SCM-LC-N2K-PLUS-V2) & app.
Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.
SHADOW-NET® TECHNOLOGY
Shadow-NET® is a multi-channel communications platform created by Shadow-Caster to allow seamless integration and control of all of your boat’s lighting.
TECHNICAL INFORMATION
-
Up to 3,000 lumens
-
120° beam angle
-
3 amps max current draw (RGB version)
- 1.5 amps continuous current draw (single color version)
- 12 volt input
-
3″ (76 mm) OD
-
IP68 fully submersible waterproof design
