2″ ROUND UNDERWATER MARINE LIGHT
SC2

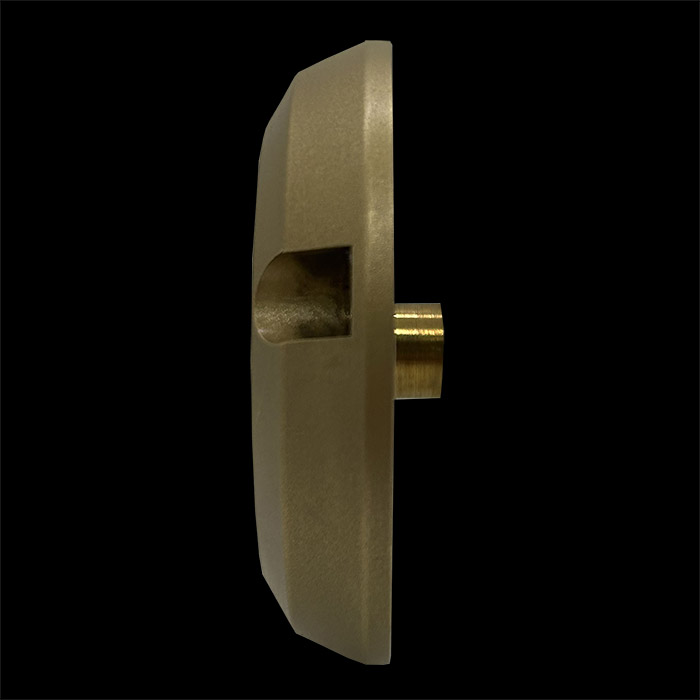

The SC2 Series 2″ round underwater marine light provide your vessel with 24 watts of intense LED lighting. The SC2’s are designed with a sub-compact 2.99” diameter composite or bronze housing for under the waterline surface mounting. Single color or color changing versions available with variable brightness and a wide array of control options.
KEY FEATURES
- Proprietary clear-gel-filled design, injected through entire unit — eliminates condensation and/or water intrusion under stress
- Tough, scratch resistant, tempered glass lens with composite or bronze housing — impervious to acetone, solvents and demanding marine environments.
- Transient surge and reverse polarity protection — dramatically prolongs unit life
- Thermal throttling technology — enables safe operation even out of water
- From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
- 3-Year Warranty
COLORS AVAILABLE / PART NUMBER
Full Color – 12-color standard, or unlimited colors with Shadow-NET®
SC2-CC-CSM (Composite)
SC2-CC-BZSM (Bronze)
Bimini Blue
SC2-BB-CSM (Composite)
SC2-BB-BZSM (Bronze)
Great White
SC2-GW-CSM (Composite)
SC2-GW-BZSM (Bronze)
CONTROL OPTIONS
POWER TOGGLE CONTROL
Quickly toggle power source to advance to next color or brightness level.
Full color lights allow for any single color on, fade blue to white, fade through all 12 colors and strobe current color.
SHADOW-NET® CONTROL
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® Light Commander control module (SCM-LC-N2K-PLUS-V2) & app.
Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.
SHADOW-NET® TECHNOLOGY
TECHNICAL INFORMATION
-
Up to 3,000 lumens
-
120° beam angle
-
24 watts power draw
-
2 amps operating current draw @ 12 volts
-
10-30 volts input
-
2.99″ (75.9 mm) OD
-
IP68 fully submersible waterproof design
