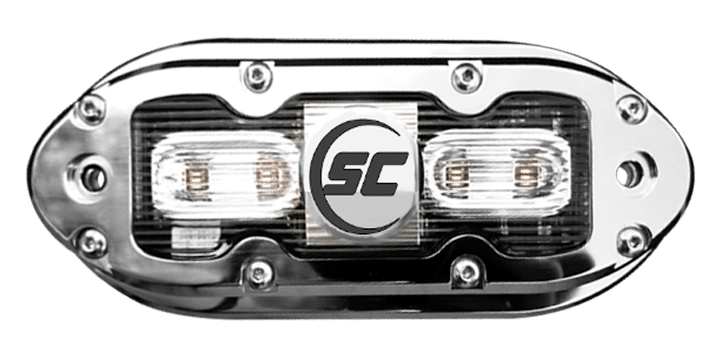

4 LED UNDERWATER MARINE LIGHT
SCM-4

The SCM-4 is a 4 LED underwater marine light and provides your vessel with 17 watts of intense LED lighting. Chose from 5 different single color options. The SCM-4’s low profile design allows for many mounting locations. The unique stainless steel housing compliments the look of any trailer or lift kept boat.

WHERE TO BUY?
SCM-4 4 LED underwater boat light from Shadow-Caster

KEY FEATURES

  • Proprietary clear-gel-filled design, injected through entire unit – eliminates condensation and/or water intrusion under stress
  • Tough, polycarbonate lens
  • Passivated stainless steel 316 material provides a durable corrosion resistant housing
  • Transient surge and reverse polarity protection – dramatically prolongs unit life
  • Thermal throttling technology – enables safe operation even out of water
  • 3-Year Warranty
SCM-4-BB-20 including side view underwater light for boats
SCM-4-UB-20 including side view underwater light for boats
SCM-4-AG-20 including side view underwater light for boats
SCM-4-CR-20 including side view underwater light for boats
SCM-4-GW-20 including side view underwater light for boats

COLORS AVAILABLE / PART NUMBER

Bimini Blue
SCM-4-BB-20

Ultra Blue
SCM-4-UB-20

Aqua Green
SCM-4-AG-20

Cool Red
SCM-4-CR-20

Great White
SCM-4-GW-20

TECHNICAL INFORMATION

  • Up to 1,600 lumens
  • 120° beam angle
  • 4 single color LEDs
  • 17 watts power draw
  • 1.4 amps operating current draw @ 12 volts
  • 10-30 volts input
  • 5.8” (148 mm) x 2.4”(61mm) x 0.5” (13mm)
  • IP68 fully submersible waterproof design

DOWNLOADS

SCM-4 Datasheet.pdf
SCM Series Installation Instructions.pdf
SCM-4 Installation Diagram.pdf
