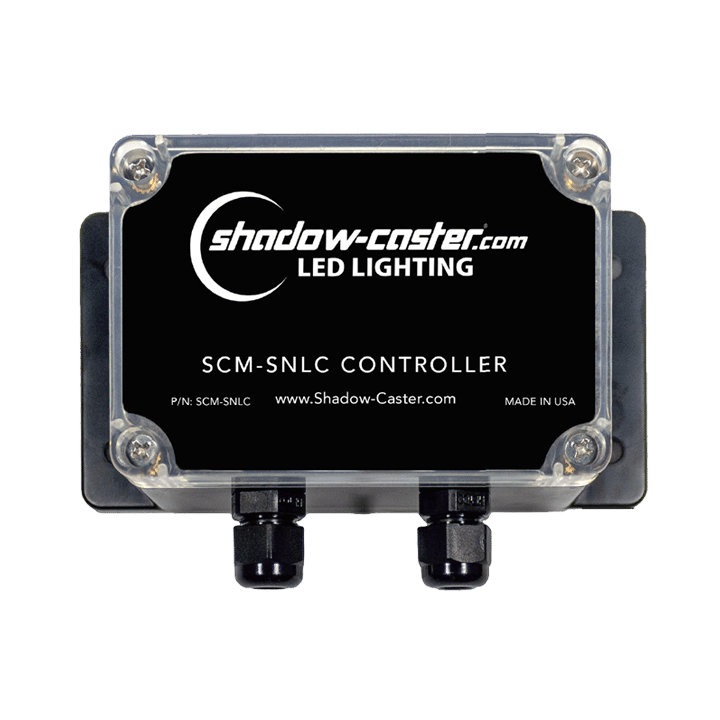

SINGLE ZONE RGBW CONTROLLER
SCM-SNLC

The Shadow-Caster® single zone lighting controller is a low cost, marine grade RGB(W) LED controller that can be operated from a standard switch. Simply toggle power to set color and brightness.

The SCM-SNLC also has a built in Shadow-NET® interface that allows the controller to synchronize color and lighting control with other Shadow-NET® devices. This enables a convenient way to make Shadow-Caster® underwater lights match the color of interior RGBW lighting.

WHERE TO BUY?
Shadow-Caster Marine LED Lighting SCM-SNLC SINGLE ZONE RGBW CONTROLLER
KEY FEATURES
  • Selectable RGB or RGBW output to support an optional white channel
  • Color coded connections make for easy installation
  • Integrated Shadow-NET® interface broadcasts lighting commands to synchronize other Shadow-NET® enabled lighting products such as underwater lights and down lights
  • This device can be added to an existing Shadow-NET® network as an additional RGBW zone
  • Control brightness, color, and select multiple fade modes
  • Compatible with RGBW strips from other manufacturers
  • Internal RGBW back light to indicate current color and mode
  • Exclusive power control technology to mitigate effects of electrical noise
  • Custom software versions available for boat builder applications. Contact Shadow-Caster® support for more details
  • 2-Year Warranty
Shadow-Caster Marine LED Lighting SCM-SNLC SINGLE ZONE RGBW CONTROLLER
CONTROL OPTIONS

POWER TOGGLE CONTROL
Quickly toggle power source to advance to next color or brightness level.

Cycle power to select color: white, blue, red, green, aqua, blue-violet, violet, magenta, yellow, purple, orange, green-yellow.

Toggle power on initial power up to set brightness.

PUSH BUTTON CONTROL
Connect to any push button controller. Ask about Shadow-Caster®’s highest quality, marine-grade push button controllers, optimized to work seamlessly with your lighting requirements.

Single color fade, multi-color fade, and multi-color rotate with optional
push button input.

Press and hold button to dim or increase brightness of lights.

SHADOW-NET® CONTROL
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC) & app.

Dramatically enhanced lighting capabilities through your existing MFD. Unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.

SHADOW-NET® TECHNOLOGY

Shadow-Net® is a multi-channel communications platform created by Shadow-Caster® to allow seamless integration and control of all of your boat’s lighting.

TECHNICAL INFORMATION
  • 5.2″ (132mm) x 2″ (51mm) x 2.75″ (70mm)
  • 10-30 volts input range
  • Support for 250W of RGBW lighting, 20 amps power
  • IP65 washdown rated enclosure
  • ATC fuse for protecting the output
INCLUDES
  • Lighting controller
  • Mounting hardware
  • Quick start guide
