MULTI ZONE CONTROL KIT
SCM-ZC-KIT

Control all of your boat’s RGB lighting with the Shadow-Caster® easy to use multi-zone push button lighting controller. Our unique system provides 4 independent zones of color, brightness, multiple fade, strobe and music sync modes. The waterproof back lit controller can be mounted conveniently at your helm for quick and easy access.

WHERE TO BUY?
Shadow-Caster Marine LED Lighting Lighting Control SCM-ZC-KIT
KEY FEATURES
  • Easy to use, tactile push button interface
  • No extra power switches required.  Our system will control all on/off power requirements for the lighting including optional Shadow-Net® lights
  • Dimmable back lights
  • Compatible with all standard RGB or RGBW lighting
  • Control unique color and brightness for each zone
  • Control speed and color sequence for multiple fade and strobe modes
  • 3 versions of music synchronization
  • Visual indication back light to indicate zone color
  • 2-Year Warranty
Shadow-Caster Lighting Controller MULTI-ZONE CONTROL
Shadow-Caster Marine LED Lighting NMEA2000 Lighting Control SCM-MZ-LC
INCLUDES

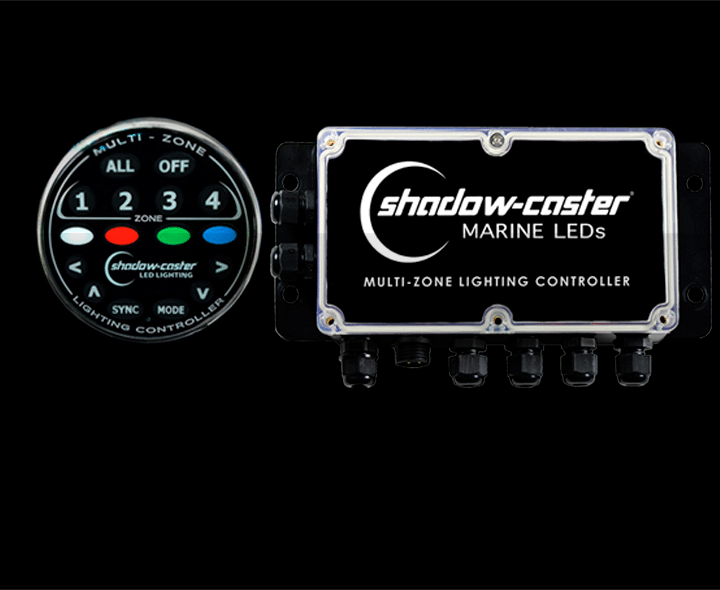

  • Multi-Zone Lighting Controller (SCM-MZ-LC)
  • Round Zone Controller Remote (SCM-ZC-REMOTE)
  • Mounting hardware
  • 1 meter Shadow-NET® communication cable PN: SCM-SCNET-01
  • Quick start guide
OPTIONAL SHADOW-NET® CABLES

2 metre cable
SCM-SCNET-02

4 metre cable
SCM-SCNET-04

Y Cable for Adding SCNET Control Devices
SCM-SCNET-Y

TECHNICAL INFORMATION
  • 4 individually fused 15 amp RGBW lighting connections
  • Compatible with 12/24 volt systems
  • 3.5mm female audio connection for music sync input
  • IP65 washdown rated enclosure
  • Round controller size: 3.6″ (92mm) OD x 0.5″ (13mm) height, mounting hole size 3″ (76mm)
  • UV stabilized polycarbonate housing with stainless steel bezel
  • Machined aluminum rear housing
  • 16 Illuminated buttons
