LED OVERHEAD DOWN LIGHT
SCM-DLX

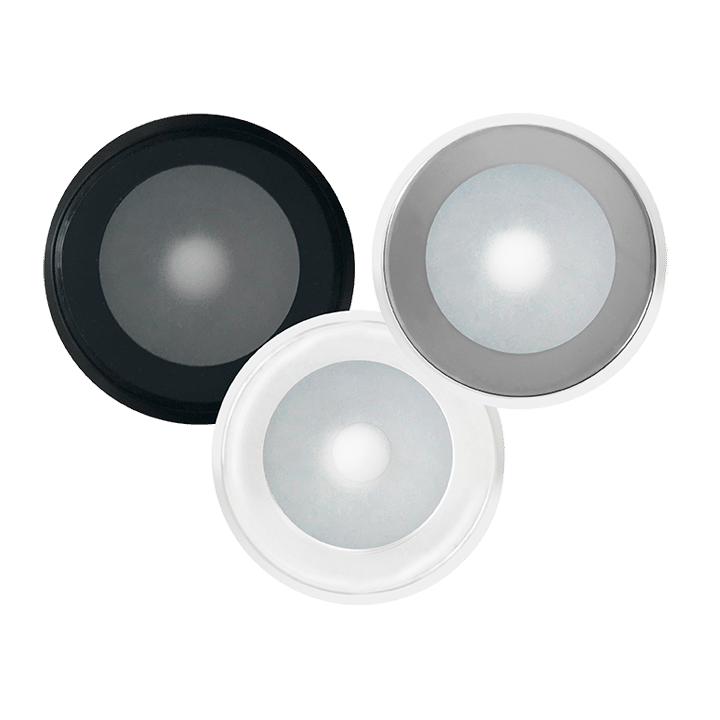

The Shadow-Caster® Large Down Light SCM-DLX is perfect for lighting overhead areas of the interior and exterior of your boat or yacht. At 3” overall diameter, its wide angle spread of light and all-glass reveal makes this the ideal light for T-Tops, cabins, towers and more. The SCM-DLX series is available in 3 light output choices; single color white, 3 color (white, blue and red) as well as a full color version. Choose from three beautiful color finishes – white, black and polished chrome. Easily control the brightness and color from a standard switch.

WHERE TO BUY?
Shadow-Caster Above Water Light SCM-DLX Series
KEY FEATURES
  • Soft start technology ramps the brightness up gently over 2 seconds.
  • Power toggle feature to set brightness and change color
  • True white LED for best color performance
  • 120 degree viewing angle
  • High efficiency switch mode power supply
  • Waterproof low-profile aluminum housing
  • All-Glass reveal provides a modern look
  • White, black or polished chrome finish
  • 2-Year Warranty
COLORS AVAILABLE / PART NUMBER
TECHNICAL INFORMATION
  • 300 lumen output
  • 120° beam angle
  • 3 watt power draw
  • 10-30 volts input
  • 250mA at 12 volts, 125mA at 24 volts
  • 6200 Kelvin cool white color temperature
  • 3” (76mm) OD, 0.175” (4mm) mounting height
  • 2″ mounting hole
  • Durable glass lens
  • IP67 waterproof design
  • Color change version includes Shadow-NET® interface for control
DOWNLOADS
CONTROL OPTIONS

POWER TOGGLE CONTROL
Quickly toggle power source to advance to next color or brightness level.

SHADOW-NET® CONTROL
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC-KIT) & app.

Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.

SHADOW-NET® TECHNOLOGY

Shadow-Net® is a multi-channel communications platform created by Shadow-Caster® to allow seamless integration and control of all of your boat’s lighting.
